`color{blue} ✍️`The interplay of light with things around us gives rise to several beautiful phenomena.

`color{blue} ✍️`The spectacle of colour that we see around us all the time is possible only due to sunlight.

`color{blue} ✍️`The blue of the sky, white clouds, the redhue at sunrise and sunset, the rainbow, the brilliant colours of some pearls, shells, and wings of birds, are just a few of the natural wonders we are used to.

`color{blue} ✍️`We describe some of them here from the point of view of physics.

`color{brown}bbul text(The rainbow)`
`color{blue} ✍️`The rainbow is an example of the dispersion of sunlight by the water drops in the atmosphere.

`color{blue} ✍️`This is a phenomenon due to combined effect of dispersion, refraction and reflection of sunlight by spherical water droplets of rain.

`color{blue} ✍️`The conditions for observing a rainbow are that the sun should be shining in one part of the sky (say near western horizon) while it is raining in the opposite part of the sky (say eastern horizon). An observer can therefore see a rainbow only when his back is towards the sun.



`color{blue} ✍️`In order to understand the formation of rainbows, consider Fig. (9.27(a). Sunlight is first refracted as it enters a raindrop, which causes the different wavelengths (colours) of white light to separate.

`color{blue} ✍️`Longer wangelength of light (red) are bent the least while the shorter wavelength (violet) are bent the most. Next, these component rays strike the inner surface of the water drop and get internally reflected if the angle between the refracted ray and normal to the drop surface is greater then the critical angle (48º, in this case).

`color{blue} ✍️`The reflected light is refracted again as it comes out of the drop as shown in the figure. It is found that the violet light emerges at an angle of 40º related to the incoming sunlight and red light emerges at an angle of 42º.
For other colours, angles lie in between these two values.

`color{blue} ✍️`Figure 9.27(b) explains the formation of primary rainbow. We see that red light from drop 1 and violet light from drop 2 reach the observers eye.

`color{blue} ✍️`The violet from drop 1 and red light from drop 2 are directed at level above or below the observer.
Thus the observer sees a rainbow with red colour on the top and violet on the bottom. Thus, the primary rainbow is a result of three-step process, that is, refraction, reflection and refraction

`color{blue} ✍️`When light rays undergoes two internal reflections inside a raindrop, instead of one as in the primary rainbow, a secondary rainbow is formed as shown in Fig. 9.27(c).
It is due to four-step process. The intensity of light is reduced at the second reflection and hence the secondary rainbow is fainter than the primary rainbow. Further, the order of the colours is reversed in it as is clear from Fig. 9.27(c).

`color{brown} bbul {"Scattering of light")`
`color{blue} ✍️`As sunlight travels through the earth’s atmosphere, it gets scattered (changes its direction) by the atmospheric particles.
Light of shorter wavelengths is scattered much more than light of longer wavelengths. (The amount of scattering is inversely proportional to the fourth power of the wavelength. This is known as Rayleigh scattering).

`color{blue} ✍️`Hence, the bluish colour predominates in a clear sky, since blue has a shorter wavelength than red and is scattered much more strongly. In fact, violet gets scattered even more than blue, having a shorter wavelength.

`color{blue} ✍️`But since our eyes are more sensitive to blue than violet, we see the sky blue.

`color{blue} ✍️`Large particles like dust and water droplets present in the atmosphere behave differently. The relevant quantity here is the relative size of the wavelength of light λ, and the scatterer (of typical size, say, a). For `a << λ,` one has Rayleigh scattering which is proportional to `(1//λ)^4`. For `a >> λ,` i.e., large scattering objects (for example, raindrops, large dust or ice particles) this is not true; all wavelengths are scattered nearly equally.

`color{blue} ✍️`Thus, clouds which have droplets of water with `a >> λ` are generally white.

`color{blue} ✍️`At sunset or sunrise, the sun’s rays have to pass through a larger distance in the atmosphere (Fig. 9.28).
Most of the blue and other shorter wavelengths are removed by scattering. The least scattered light reaching our eyes, therefore, the sun looks reddish. This explains the reddish appearance of the sun and full moon near the horizon.

`color{blue} ✍️`A number of optical devices and instruments have been designed utilising reflecting and refracting properties of mirrors, lenses and prisms.

`color{blue} ✍️`Periscope, kaleidoscope, binoculars, telescopes, microscopes are some examples of optical devices and instruments that are in common use.

`color{blue} ✍️`Our eye is, of course, one of the most important optical device the nature has endowed us with. Starting with the eye, we then go on to describe the principles of working of the microscope and the telescope.

`color{brown} text( The eye)`

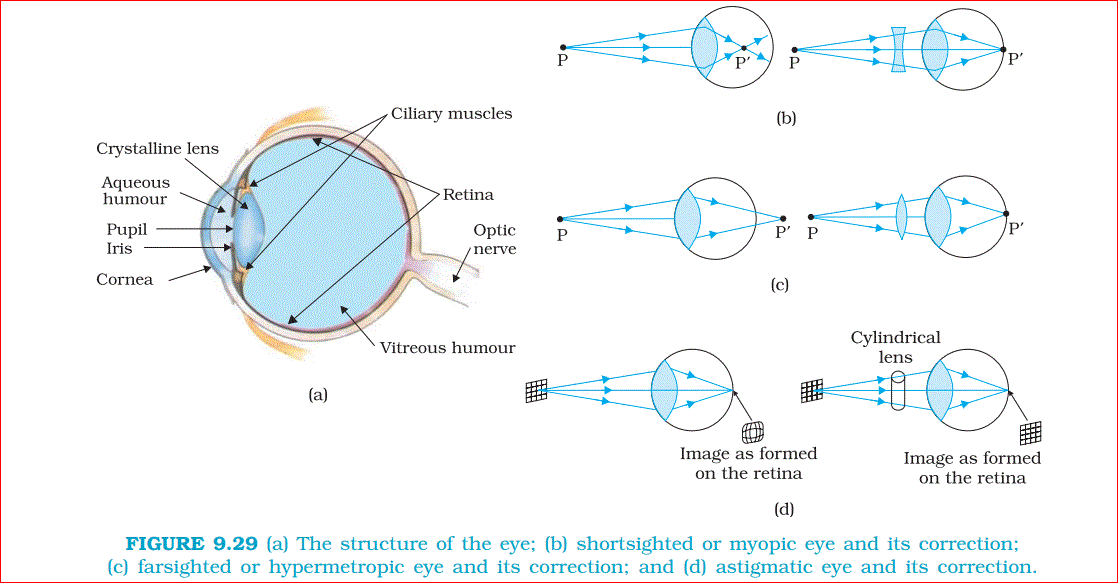

`color{blue} ✍️`Figure 9.29 (a) shows the eye. Light enters the eye through a curved front surface, the cornea. It passes through the pupil which is the central hole in the iris.

`color{blue} ✍️`The size of the pupil can change under control of muscles. The light is further focussed by the eye lens on the retina. The retina is a film of nerve fibres covering the curved back surface of the eye.

`color{blue} ✍️`The retina contains rods and cones which sense light intensity and colour, respectively, and transmit electrical signals via the optic nerve to the brain which finally processes this information.

`color{blue} ✍️`The shape (curvature) and therefore the focal length of the lens can be modified somewhat by the ciliary muscles. For example, when the muscle is relaxed, the focal length is about 2.5 cm and objects at infinity are in sharp focus on the retina.

`color{blue} ✍️`When the object is brought closer to the eye, in order to maintain the same image-lens distance (≅ 2.5 cm), the focal length of the eye lens becomes shorter by the action of the ciliary muscles. This property of the eye is called accommodation.

`color{blue} ✍️`If the object is too close to the eye, the lens cannot curve enough to focus the image on to the retina, and the image is blurred. The closest distance for which the lens can focus light on the retina is called the least distance of distinct vision, or the near point.

`color{blue} ✍️`The standard value for normal vision is taken as 25 cm. (Often the near point is given the symbol D.) This distance increases with age, because of the decreasing effectiveness of the ciliary muscle and the loss of flexibility of the lens.

`color{blue} ✍️`The near point may be as close as about 7 to 8 cm in a child ten years of age, and may increase to as much as 200 cm at 60 years of age. Thus, if an elderly person tries to read a book at about 25 cm from the eye, the image appears blurred. This condition (defect of the eye) is called `"presbyopia."`

`color{blue} ✍️`It is corrected by using a converging lens for reading. Thus, our eyes are marvellous organs that have the capability to interpret incoming electromagnetic waves as images through a complex process.

`color{blue} ✍️`These are our greatest assets and we must take proper care to protect them. Imagine the world without a pair of functional eyes. Yet many amongst us bravely face this challenge by effectively overcoming their limitations to lead a normal life.
They deserve our appreciation for their courage and conviction.

`color{blue} ✍️`In spite of all precautions and proactive action, our eyes may develop some defects due to various reasons. We shall restrict our discussion to some common optical defects of the eye.

`color{blue} ✍️`For example, the light from a distant object arriving at the eye-lens may get converged at a point in front of the retina. This type of defect is called nearsightedness or myopia.

`color{blue} ✍️`This means that the eye is producing too much convergence in the incident beam. To compensate this, we interpose a concave lens between the eye and the object, with the diverging effect desired to get the image focussed on the retina [Fig. 9.29(b)].

`color{blue} ✍️`Similarly, if the eye-lens focusses the incoming light at a point behind the retina, a convergent lens is needed to compensate for the defect in vision. This defect is called farsightedness or hypermetropia [Fig. 9.29(c)].

`color{blue} ✍️`Another common defect of vision is called astigmatism. This occurs when the cornea is not spherical in shape. For example, the cornea could have a larger curvature in the vertical plane than in the horizontal plane or vice-versa.

`color{blue} ✍️`If a person with such a defect in eye-lens looks at a wire mesh or a grid of lines, focussing in either the vertical or the horizontal plane may not be as sharp as in the other plane. Astigmatism results in lines in one direction being well focussed while those in a perpendicular direction may appear distorted [Fig. 9.29(d)].

`color{blue} ✍️`Astigmatism can be corrected by using a cylindrical lens of desired radius of curvature with an appropriately directed axis. This defect can occur along with myopia or hypermetropia.
